Rib Locking Fixation Plate System

Kangli Orthopaedics supplies the Rib Locking Fixation Plate System for orthopedic distributors and physicians sourcing implants for rib and chest wall fixation. The system includes narrow, rounded-end plates with gentle or pronounced curves, repeated circular locking holes, and recessed cross-drive interfaces along the rib-facing line. This configuration represents a locking plate construct and differs from claw-style components that extend around the rib margins.

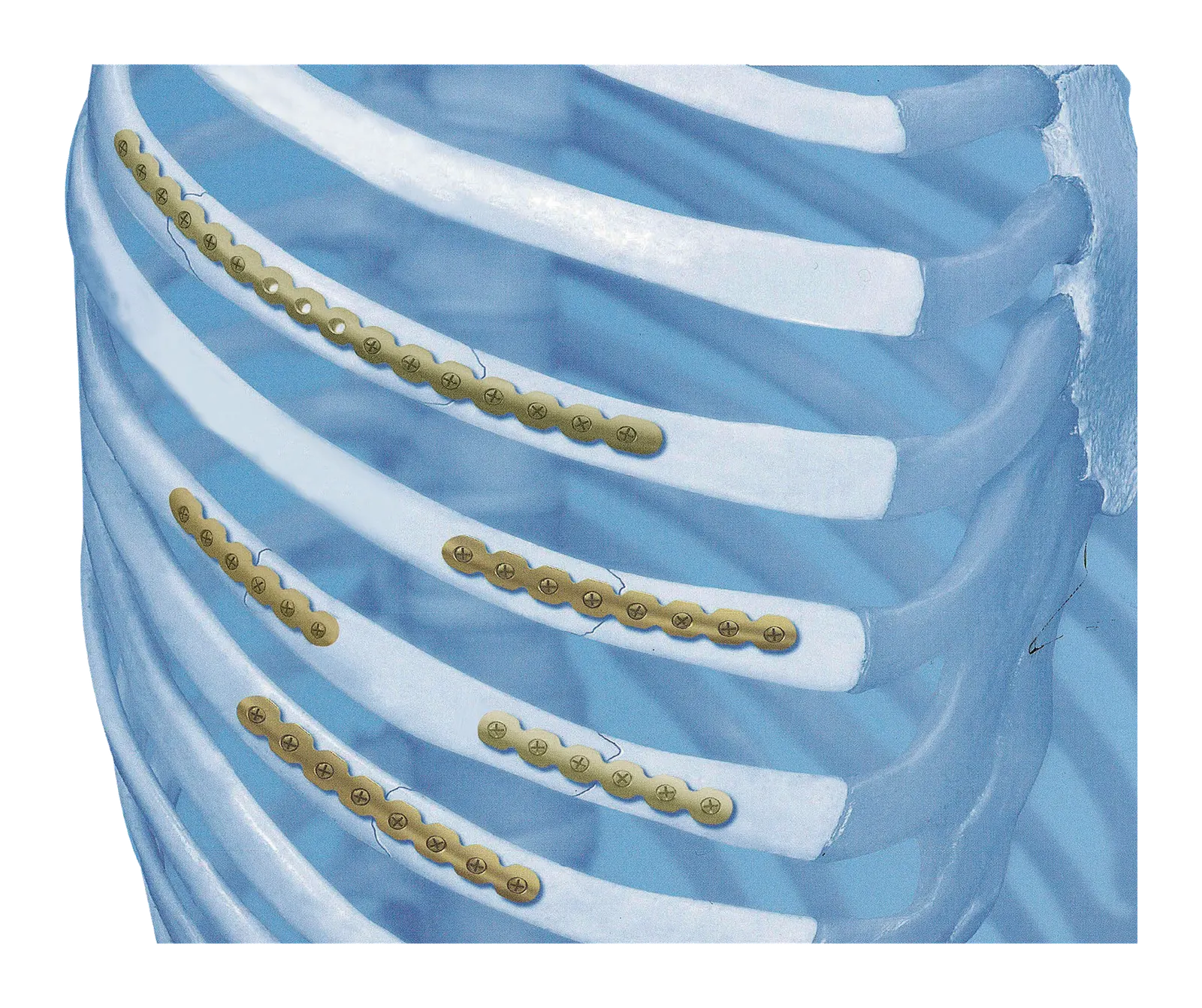

Curved Plate Profiles for Rib Contours

Each plate features a continuous rib-shaped curve, with longer curved designs and shorter rounded-end options for different chest wall contours. The curved profile provides a fixation path that follows the changing line of the rib rather than forming a straight strip across the thoracic surface. Because the plate seats against the outer rib surface as it is, the periosteum does not have to be stripped back to make room for it — a preparation step the construct does not call for.

Locked Screw Purchase for Stable Rib Fixation

The plate and screw threads engage each other at the hole, so each screw is fixed at its angle in the plate rather than drawing the plate down onto bone. The result is a single locked frame across the rib segment: the plate holds the screws, the screws hold the bone, and the construct resists movement between the fragments as one unit instead of relying on friction under the plate.

Central Locking Holes for Rib Fixation

Circular locking holes are arranged along the centre of each plate to provide multiple fixation positions across the rib segment. Their regular spacing creates an organised fixation line while preserving the narrow profile between the rounded plate edges.

Recessed Cross-Drive Interfaces

The locking points incorporate recessed cross-shaped drive interfaces within the circular head areas. By remaining within the plate profile, the interfaces form a contained driver connection along the curved implant surface.

Depth-Limiting Drill for Thin Cortical Bone

The system is used with a depth-limiting drill, whose collar stops the bit advancing once the set depth is reached. The stop is mechanical rather than a matter of feel, so the drill cannot travel further than the limit allows behind a thin rib cortex — the depth is set by the instrument, not judged mid-pass.

Rounded Ends for Chest Wall Applications

The plate ends taper into rounded terminals that continue the curve without a square cutoff. This design creates a gradual transition at each end of the implant where it meets the rib contour.

Orthopedic Applications for Rib and Chest Wall Fixation

The system is specified for applications including:

• Rib fracture fixation
• Chest wall fixation
• Thoracic fracture fixation
• Locking plate constructs along curved ribs

The Rib Locking Fixation Plate System can be considered alongside the Rib Claw Plate when a rib fixation configuration calls for a continuous locking plate line rather than claw extensions around the rib margins.
